 Service Manual
Glass, Frames and Mechanisms
Rear Door Window Regulator

General Equipment

5 mm Drill Bit

Adhesive Tape

General Equipment

Blind Rivet Gun

Electric Drill

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

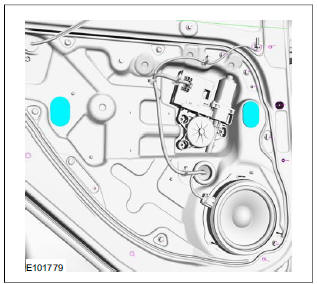

Rear Door Window Regulator

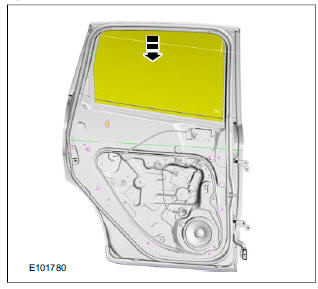

Rear Door Window Regulator

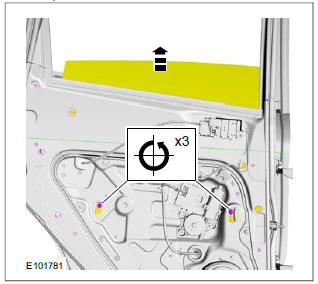

4. Torque: 7 Nm

Rear Door Window Regulator

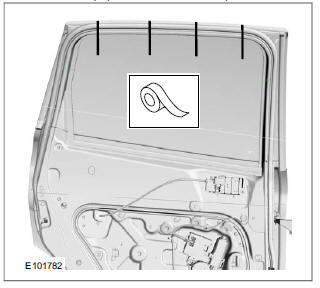

5. General Equipment: Adhesive Tape

Rear Door Window Regulator

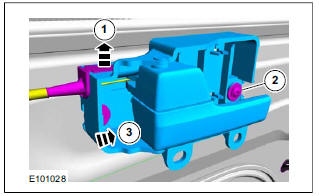

Rear Door Window Regulator

7. Torque: 8 Nm

Rear Door Window Regulator

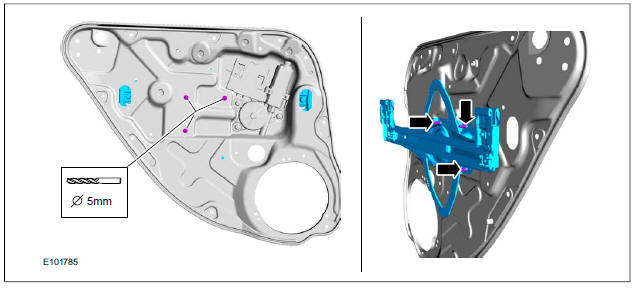

8. General Equipment: Electric Drill General Equipment: 5 mm Drill Bit

Rear Door Window Regulator

Installation

1. General Equipment: Blind Rivet Gun

Rear Door Window Regulator

2. To install, reverse the removal procedure.

Refer to: Door Window Motor Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
