Rear Drive Halfshafts

Rear Halfshaft

Special Tool(s) / General Equipment

308-759 Remover, Rear Driveshaft
Cable Ties
Tire Lever
Transmission Jack
Materials
Name Specification
Sealant LGN WSK-M2G349-A8 / 9U7J-M2G349-AA

Removal

1. On both sides.

Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

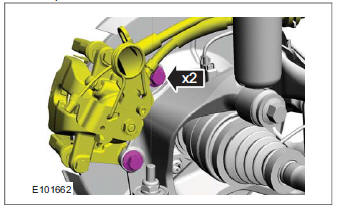

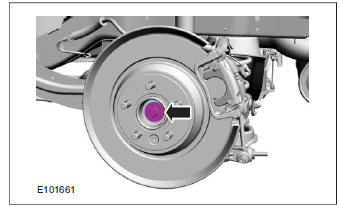

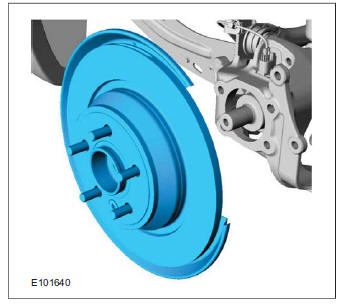

2. On both sides.

Rear Drive Halfshafts

3. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation).

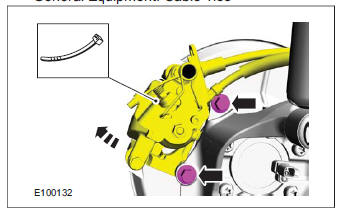

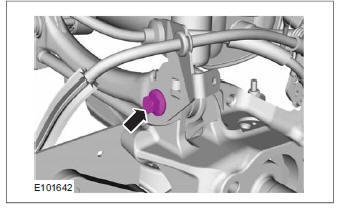

WARNING: Make sure that no load is placed on the brake hose.

On both sides.

General Equipment: Cable Ties

Rear Drive Halfshafts

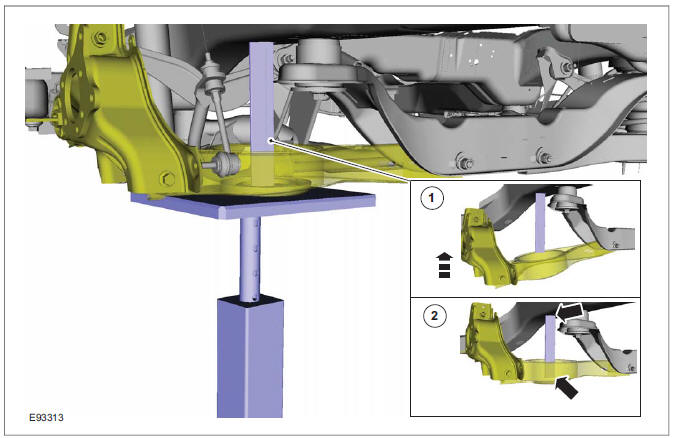

5. On both sides.

Refer to: Spring (204-02 Rear Suspension, Removal and Installation).

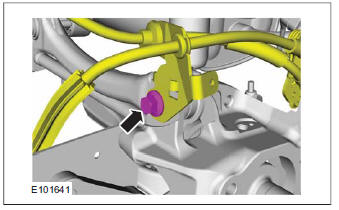

6. On both sides.

Rear Drive Halfshafts

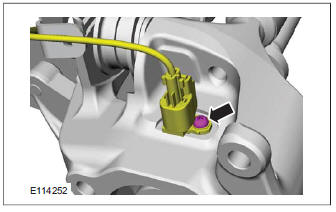

7. On both sides.

Rear Drive Halfshafts

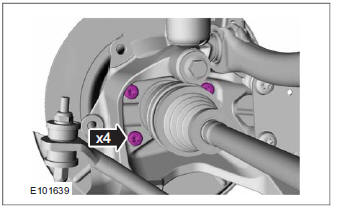

8. On both sides.

Rear Drive Halfshafts

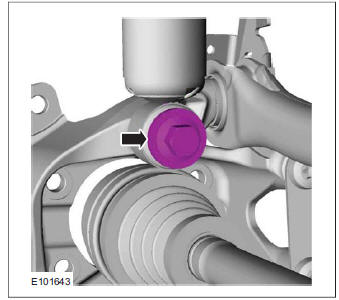

9. On both sides.

Rear Drive Halfshafts

10.On both sides.

Rear Drive Halfshafts

Vehicles built up to 06/2009

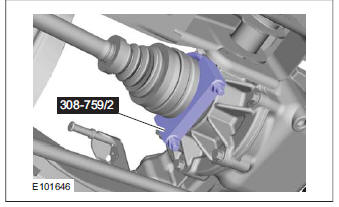

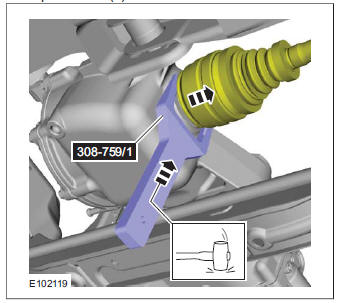

11. Install the Special Tool(s): 308-759

Rear Drive Halfshafts

12. Special Tool(s): 308-759

Rear Drive Halfshafts

13.Remove the Special Tool(s): 308-759

Vehicles built 07/2009 onwards

14. General Equipment: Tire Lever

Rear Drive Halfshafts

All vehicles

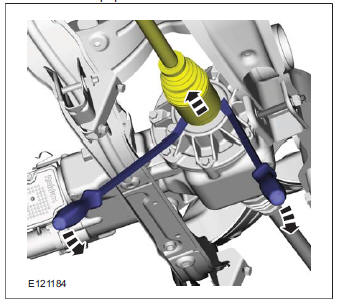

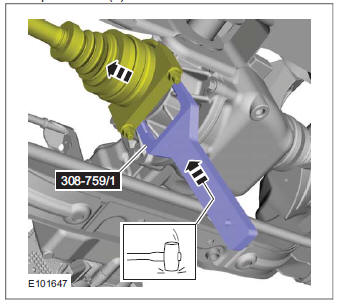

15. Special Tool(s): 308-759

Rear Drive Halfshafts

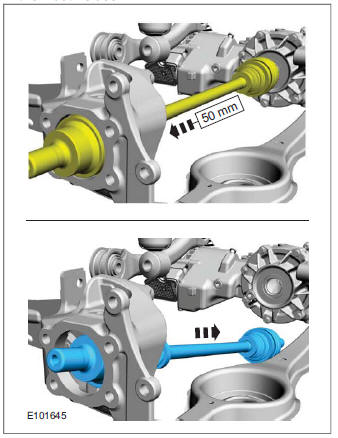

16.On both sides.

Rear Drive Halfshafts

Installation

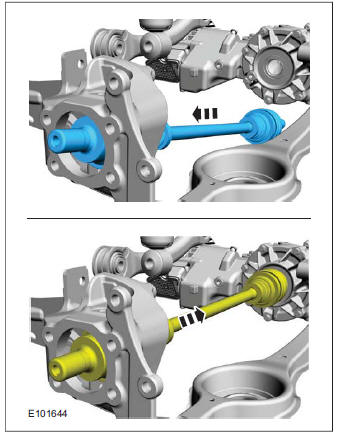

1. On both sides.

Rear Drive Halfshafts

2. On both sides.

Torque: 115 Nm

Rear Drive Halfshafts

3. NOTE: Only tighten the bolt finger tight at this stage.

On both sides.

Rear Drive Halfshafts

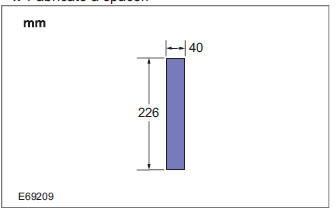

4. Fabricate a spacer.

Rear Drive Halfshafts

5. On both sides.

General Equipment: Transmission Jack

Rear Drive Halfshafts

6. On both sides.

Torque: 130 Nm

Rear Drive Halfshafts

7. Remove the following items:

1. Spacer

2. General Equipment: Transmission Jack

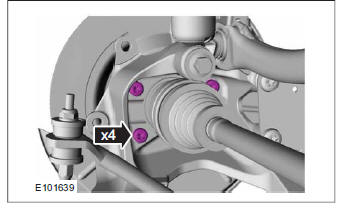

8. On both sides.

Torque: 5 Nm

Rear Drive Halfshafts

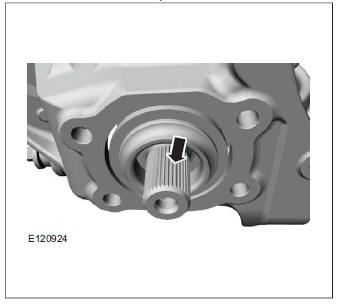

9. On both sides.

Material: Sealant LGN (WSK-M2G349-A8 / 9U7J-M2G349-AA) adhesive

Rear Drive Halfshafts

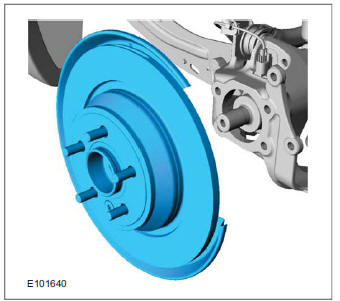

10.On both sides.

Rear Drive Halfshafts

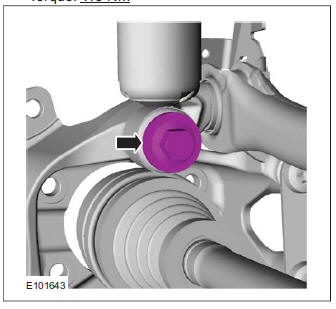

11.On both sides.

Torque: 110 Nm

Rear Drive Halfshafts

12.On both sides.

Refer to: Spring (204-02 Rear Suspension, Removal and Installation).

WARNING: Make sure that no load is placed on the brake hose.

On both sides.

Torque: 110 Nm

Rear Drive Halfshafts

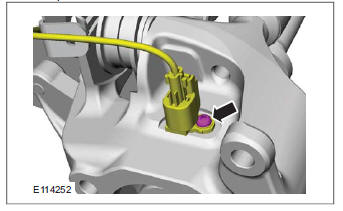

14.On both sides.

Material: Sealant LGN (WSK-M2G349-A8 / 9U7J-M2G349-AA) adhesive

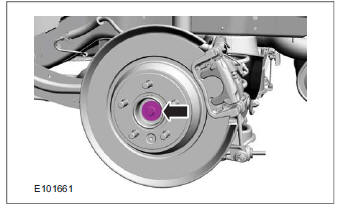

Torque: 50 Nm

Rear Drive Halfshafts

15.On both sides.

Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

16. Refer to: Differential Fluid Level Check (205-02 Rear Drive Axle/Differential, General Procedures).
