Rear Suspension
Wheel Bearing and Wheel Hub

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

2. Refer to: Rear Wheel Speed Sensor (206-09 Anti-Lock Control - Stability Assist, Removal and Installation).

WARNING: Make sure that no load is placed on the brake hose.

Wheel Bearing and Wheel Hub

4x4

Wheel Bearing and Wheel Hub

5. If equipped.

Wheel Bearing and Wheel Hub

All vehicles

Wheel Bearing and Wheel Hub

Wheel Bearing and Wheel Hub

Installation

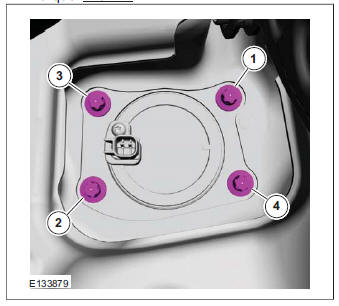

1. Torque: 110 Nm

Wheel Bearing and Wheel Hub

Wheel Bearing and Wheel Hub

4x4

3. NOTE: Only tighten the bolt finger tight at this stage.

Wheel Bearing and Wheel Hub

All vehicles

WARNING: Make sure that no load is placed on the brake hose.

Torque: 110 Nm

Wheel Bearing and Wheel Hub

5. Refer to: Rear Wheel Speed Sensor (206-09 Anti-Lock Control - Stability Assist, Removal and Installation).

6. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

4x4

7. Torque: 50 Nm

Wheel Bearing and Wheel Hub

8. If equipped.

Wheel Bearing and Wheel Hub
